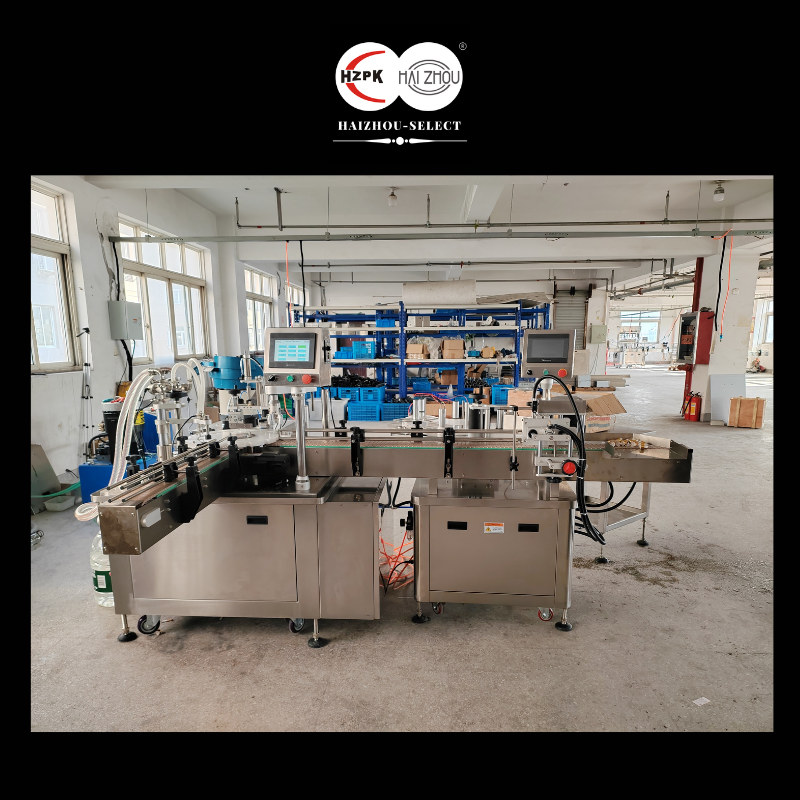

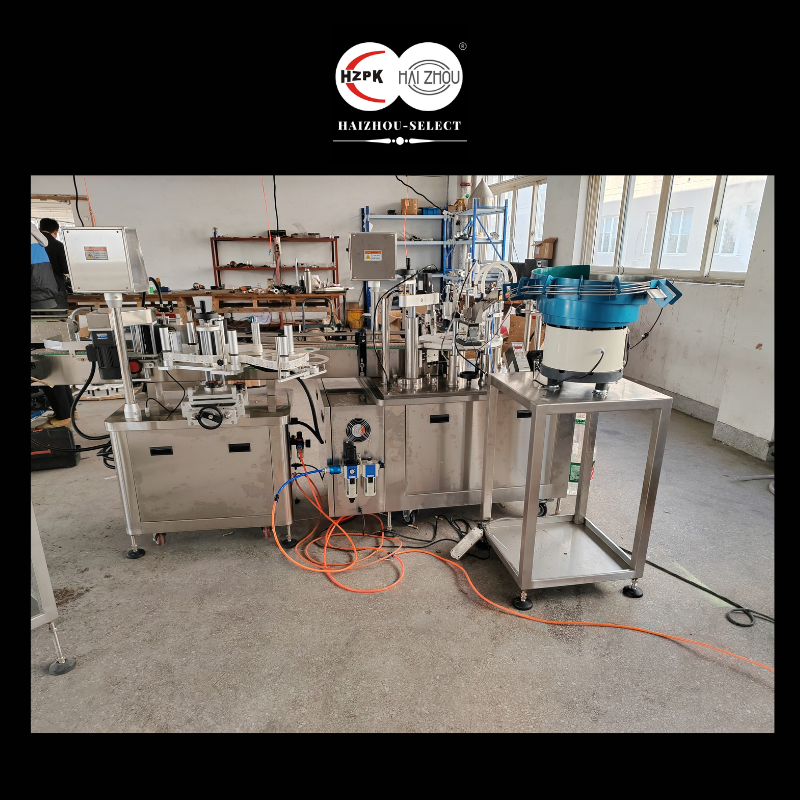

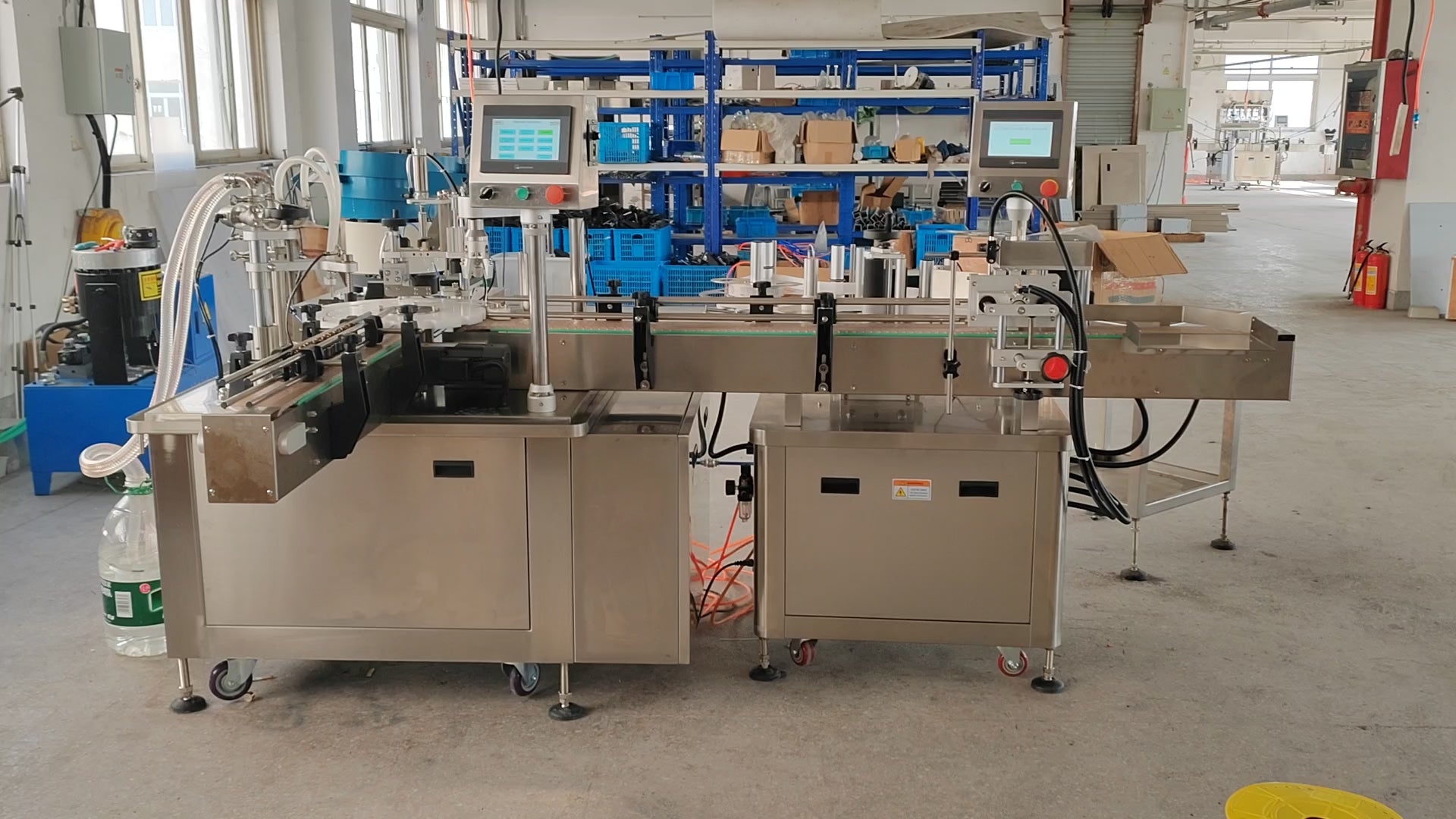

HAIZHOU-SELECT Fully Automatic Rotary Type Filling and Capping Machine Dropper Essential Oil Production Auto labeler

• Auto filling machine&Capping Machine - Labeling machine

Machine custmoized base on bottle sample, you can send me your sample picture and size to me, we will make quotation to you.

Sample：

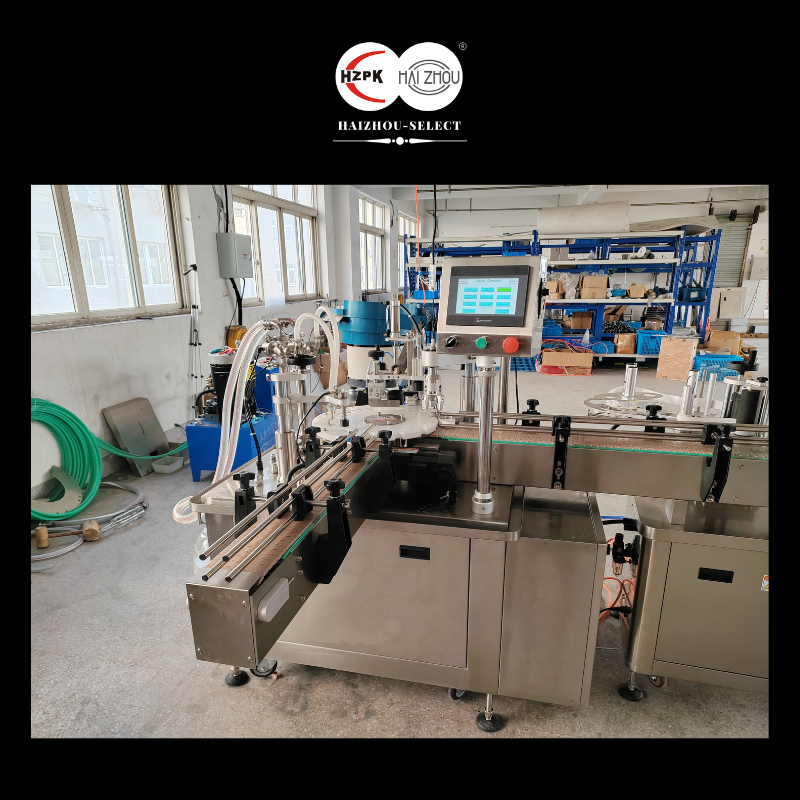

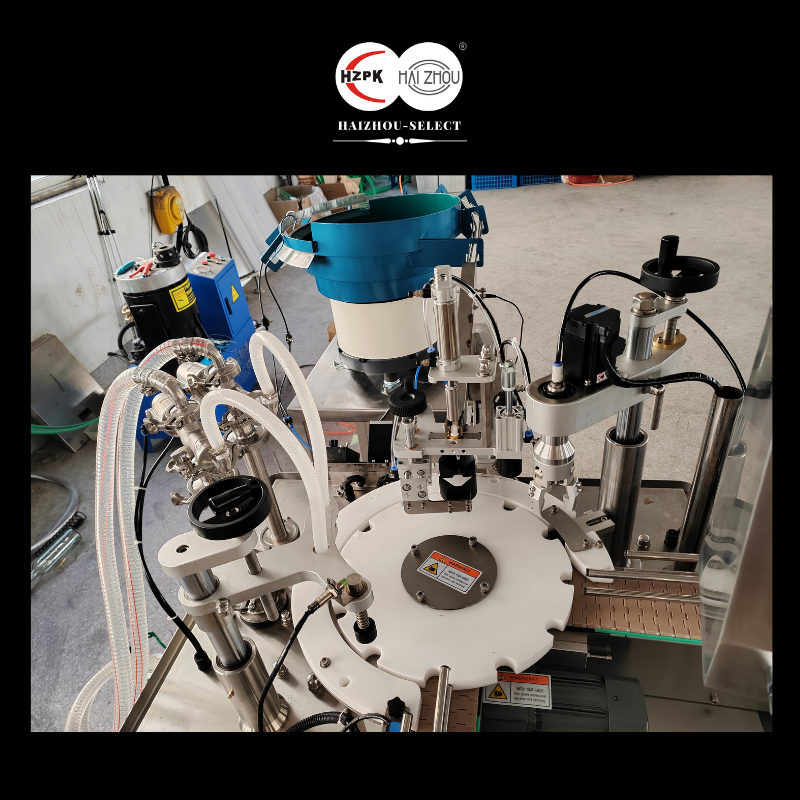

FILLING&CAPPING MACHINE OVERVIEW : 2Nozzles  /  Capping Head :  Servo motor
1. Filling volume : 5-500ml (according to sample)
2. Working speed : up to 30bottles/min
3. Filling type: Gear Pump with servo motor control                                                        4. Conveyor length : Inlet 1meter
5. Strike type cap feeding
6. Feeder caps automatically by vibration (one size for one caps diameter)
7. Machine material: 304 stainless steel
8. Capping type: servo motor three screw grab
9. Voltage: 220V 50Hz
10. Before filling machine with detection, no bottle no filling

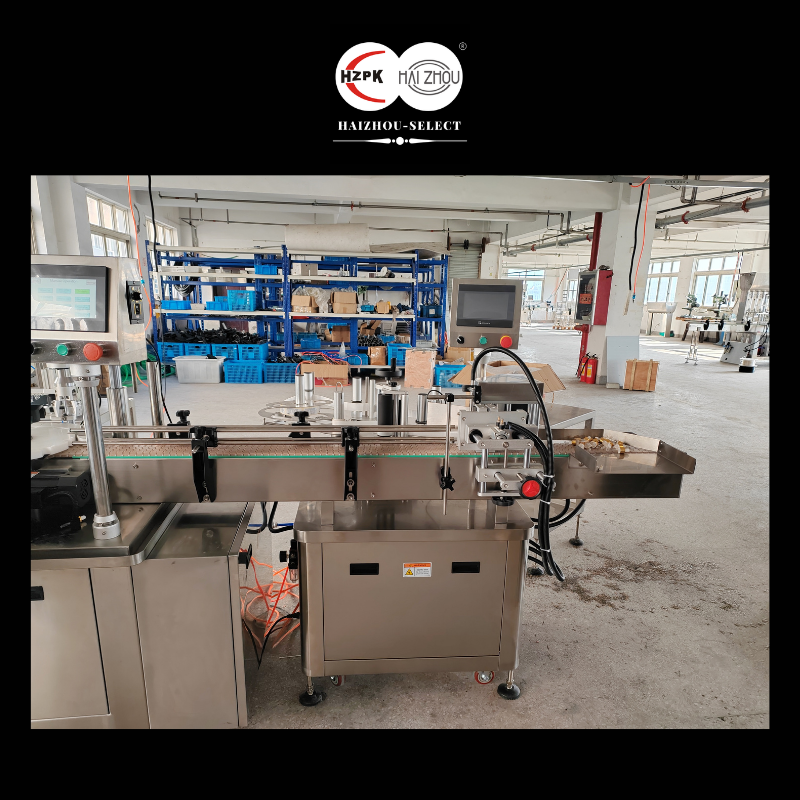

LABELING MACHINE OVERVIEW:
1. Labeling type: Paper sticker (Self adhesive)
2. Labels material: Thick paper
3. Labeling function: bottle holder with step motor
4. labels size suitable: L/30-200mm ; W/20-150mm (depend on labels thickness)
5. Labeling speed:  up to 30bottles/min
6. Conveyor 2 meter for small bottle the conveyor connect on filling&capping machine
7. Hold bottle with step motor, labeling machine more stable

• Filling Machine and Capping Machine Configuration List

1.Machine body : 304 # Stainless steel [NOTE:The place of relatively heavy load ,we used iron with spray]
2.Hopper , Filling nozzle and material connect parts 304# stainless steel ,Piston use PPE
3.Pneumatic parts : Airtac (Taiwan)
4.Program Controller (PLC): Delta (Taiwan)
5.Touch Screen: Delta (Taiwan)
6.Photoelectric Sensors: SICK or LEUZE (Germany)
7.Relay : OMRON (Japan)
switch : Schneider (France)
8.The Conveyor belt material : 114mm Wide, POM material
9.Conveyor motor : Domestic brands Motor
10.Capping Motor:Domestic brands servo Motor
11. Filling Machine seal material :PTFE, silicone
12. Filling Machine Hosing :stainless steel and plastic food grade

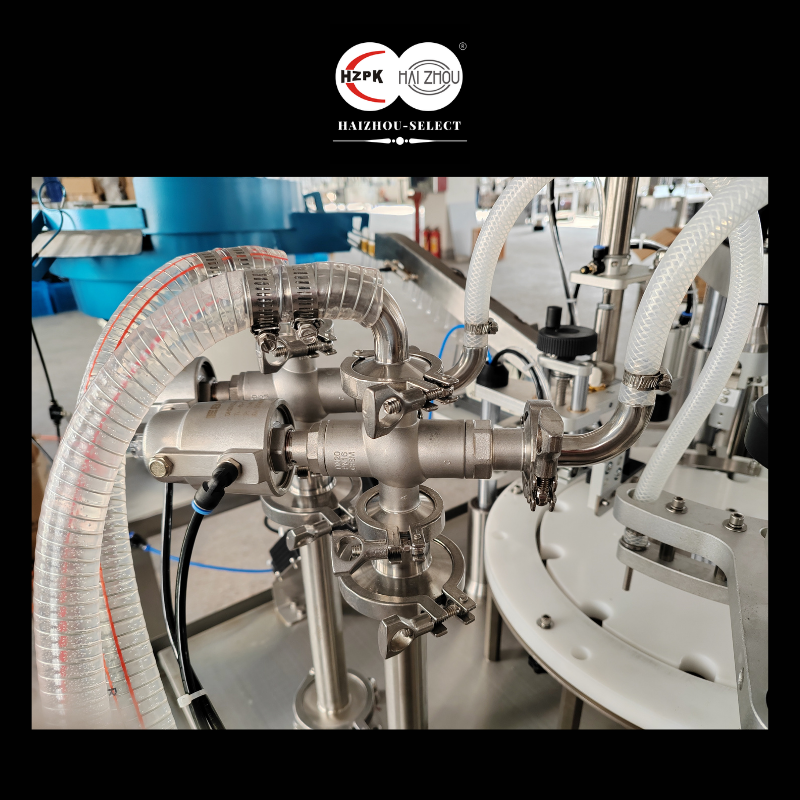

• Filling nozzle (Angle valve type with hose)

Piston type filling type ( Can be customzied according to your sample)

Pressing caps

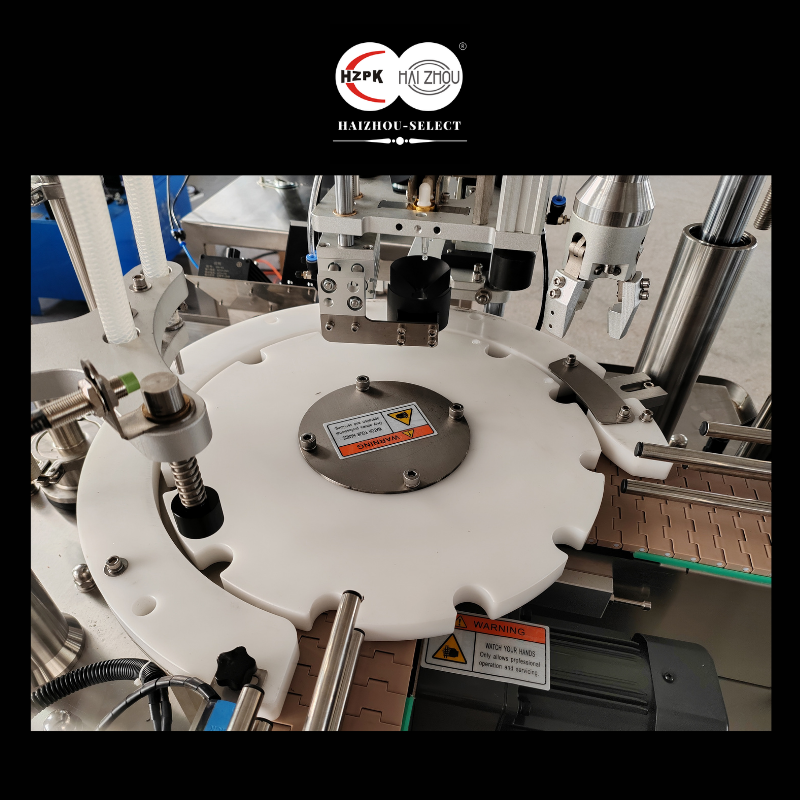

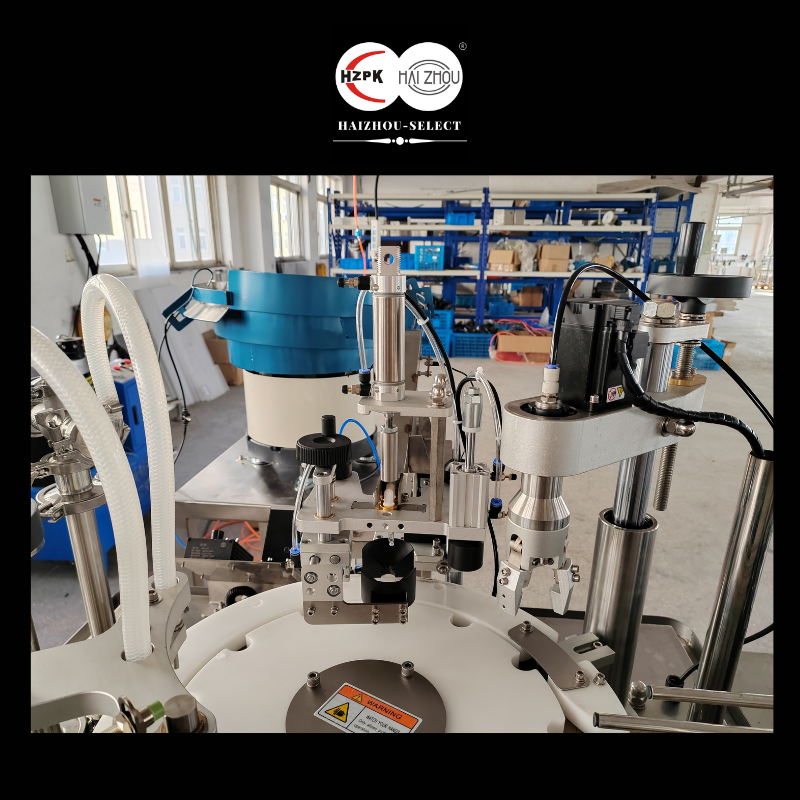

Servo motor capping head

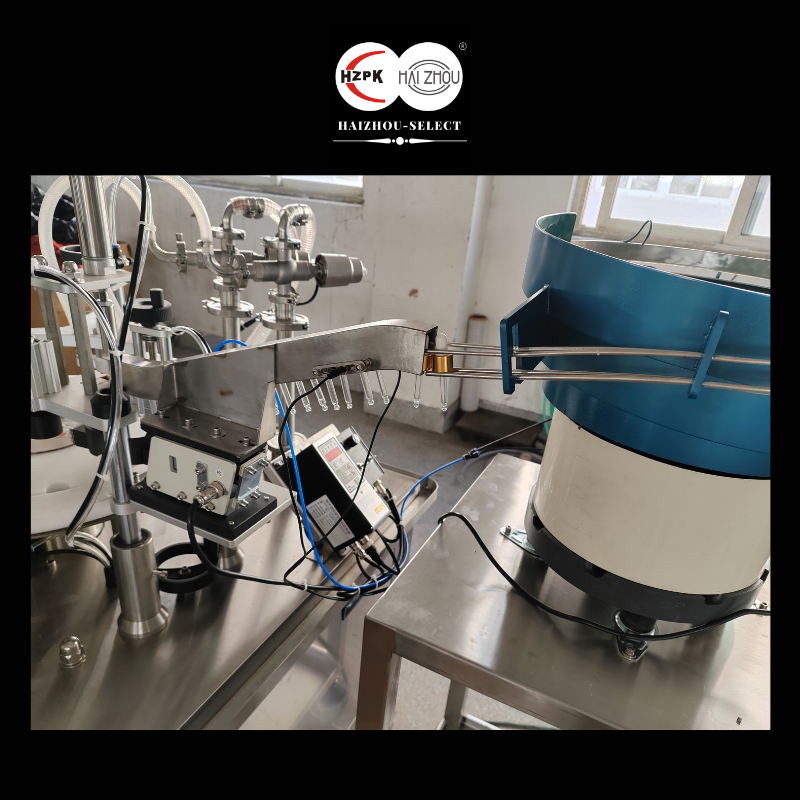

Vibration caps feeding

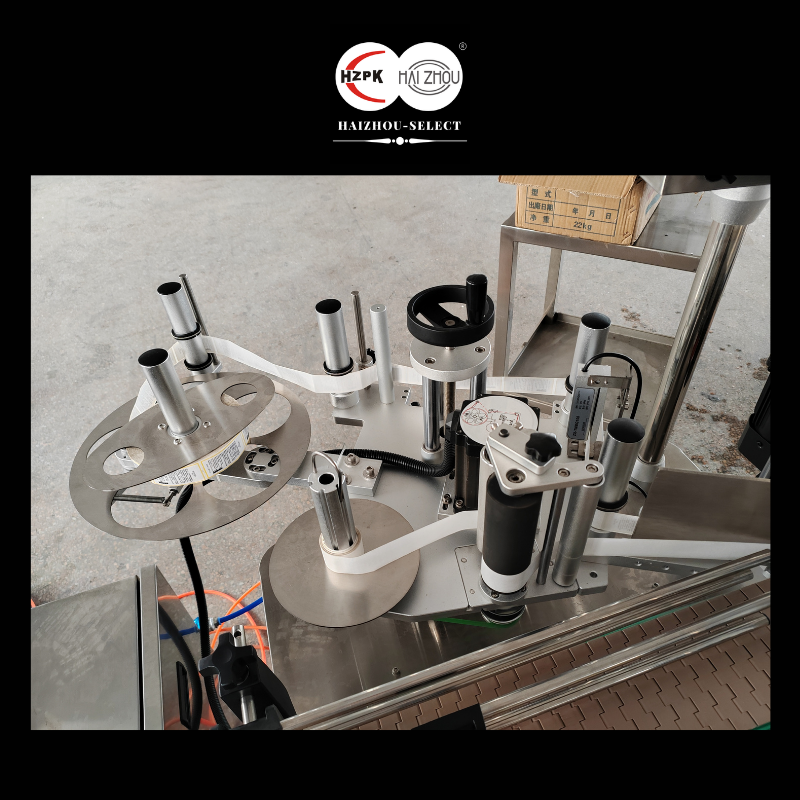

Labeling Machine

Workflow:

1. Bottle feeding on conveyor
2. Bottle detection
3. Two heads filling
4. Caps feeding
5. Caps pressing
6. Capping head
7. Bottle outlet
8. Bottle round labeling
