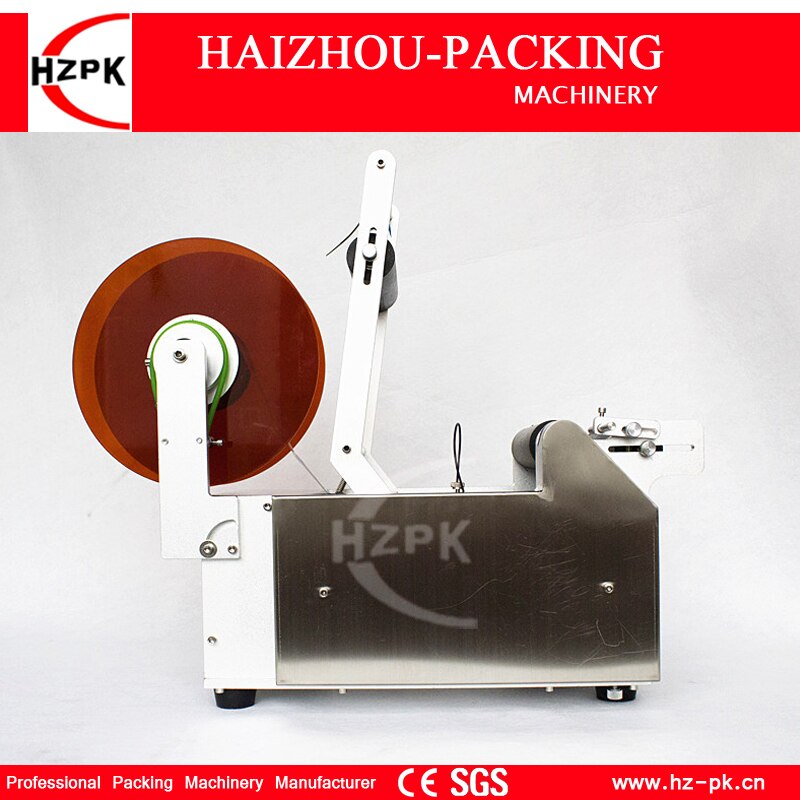

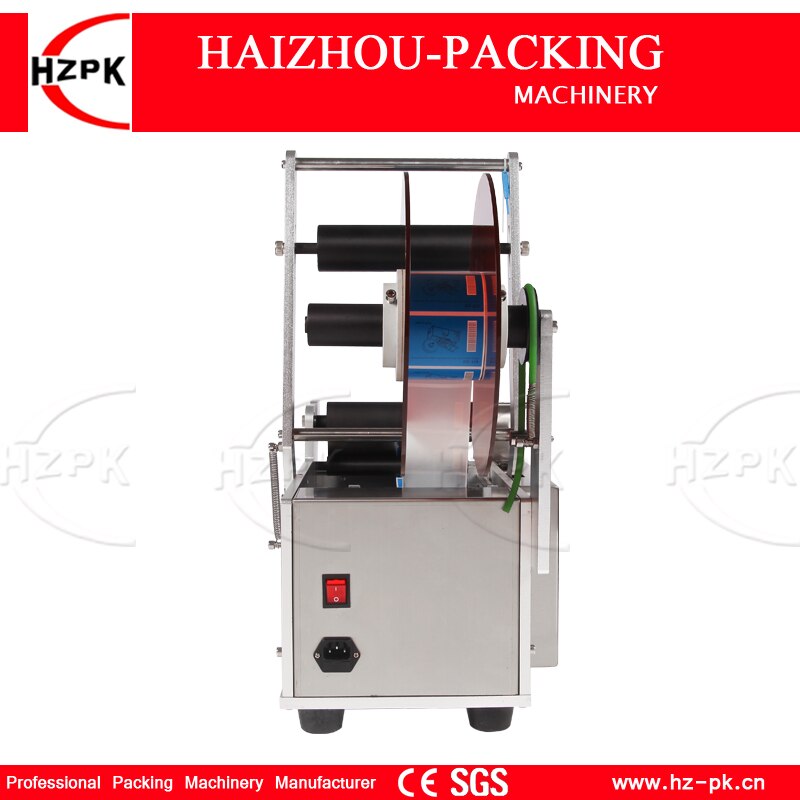

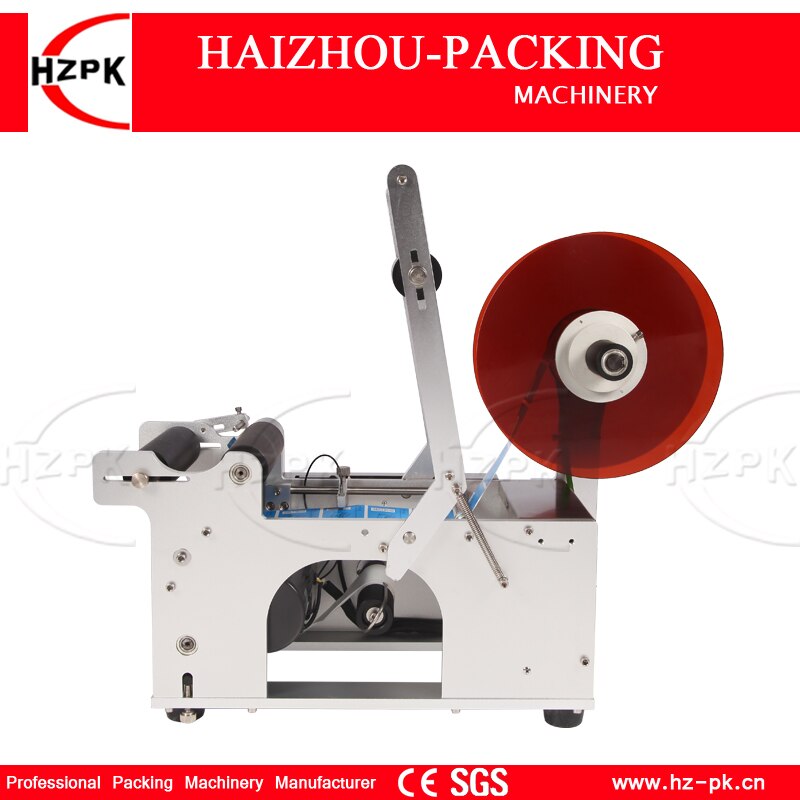

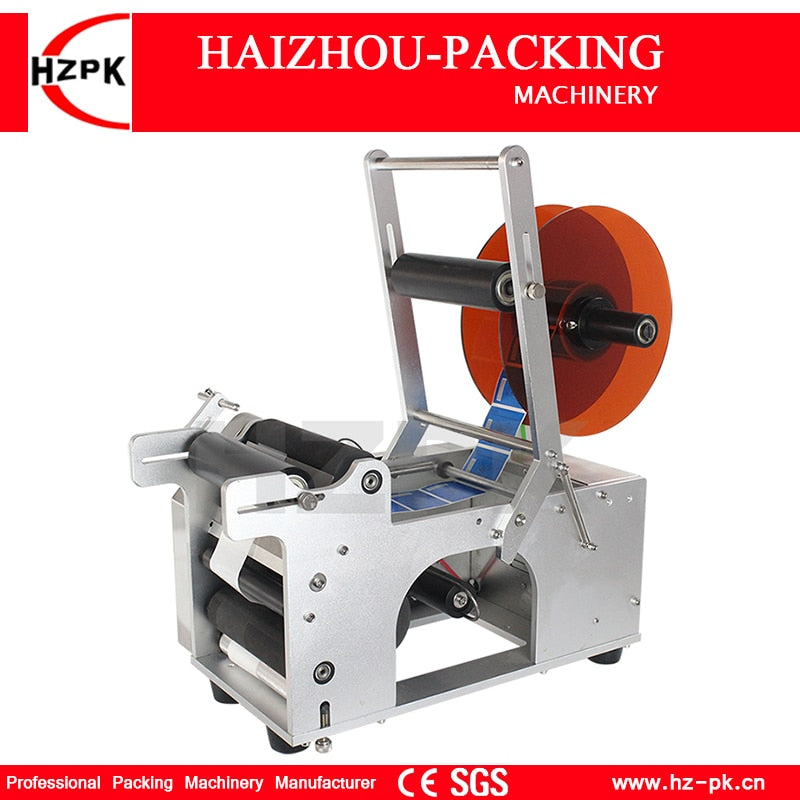

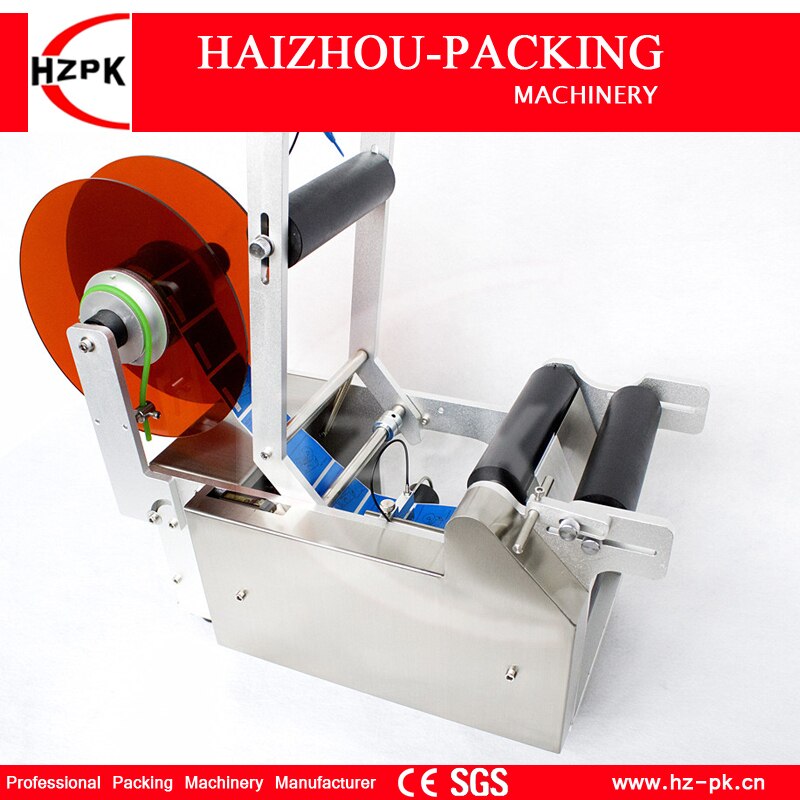

HZPK Semi-automatic Metal Body Round Plastic Glass Iron Bottle Electric Power Sticker Labeler Widen Type Labeling machine MT-50W

A.Working principle
The machine adopts high precision intelligent electric eye combined with extremely reliable PLC controlling division labels into lots and labeling. By adsorbing adhesive stickers into the labeling head with air pressure, the labeling can be realized.
B.Advantages of product
1，Efficiency is up to 50 times/minutes.
2，Labeling bottle adjustable, meet different before and after the workpiece labeling needs.
3，Excellent effect can be delivered for labels with no wrinkles and no bubbles
4，Choose sensor etc electronic components, performance very stable.
5，Modular design, convenient maintenance and low repair cost..
C.Technical parameters
1，efficiency：≤30pcs/min （according to overall size of the label ）
2，precision：±1mm
3，Applicable bottles of diameter：Φ20-150mm
4，label roll：out diameter 260mm inner diameter：75mm
5，Label size：width 20-250mm length 30-290mm
6，Power supply：220 V, 50HZ 120W
7，Machine size：670（L）×515（W）×378（H）mm
8，Machine weight：35kg

Operations guidelines:
1.Adjustment for bottle size
Adjustment for bottle:Loosen the screws on both ends of the roll,put the bottle on it, adjust the roll to the proper position, and then secure the screw.
2.Adjustment for label:
(Refer to the figure above) Put the positioning mark to the proper position of the label, and then fix the positioning (sticking to stop at that position every time).
3.Installation label:
Remove the front label plate, loosen the set screw, adjust to the desired position, tighten the set screw; the reel label on the label plate and the label plate pressed, install the front label plate, the label plate Loose state, pull out the label, according to the schematic marked route, wear reel label tape, label head fixed on the hand shaft.
